NOOTEBOOM
8-axle Lowbed (3+5) Ref: 953

Reference

953

Date of manufacture

1999

Brand

Nooteboom

Type

EURO-129-35

Extendable

Yes

Technical data

Front axles

Rear axles

Axle number

Steering Axles number

Axle brand

BPW

Suspension

Pendular

Hydraulic

Tire size

285/70 R19'5

Tires number

Spare Wheel

Excavator trough

Yes

Steering control remote

Yes, by cable

Weights in kg

60 Km/h

Fifth wheel load

28.250

Front axle load

44.748

Rear axle load

67.800

GVW

140.798

Deadweight

42.040

Payload

98.758

Dimensions in mm

Kin-pin height

1.390

Gooseneck length

4.200

Total length closed/ext.

23.550

26.550

Loadfloor length closed/ext.

7.000

10.000

Extension

3.000

Turning radius front

1.450

Rolling length

7.700

Axle distance

1.510

Total height

2.900

Loadfloor width

3490-3990

Loadfloor extension (width)

Yes

Documents to download

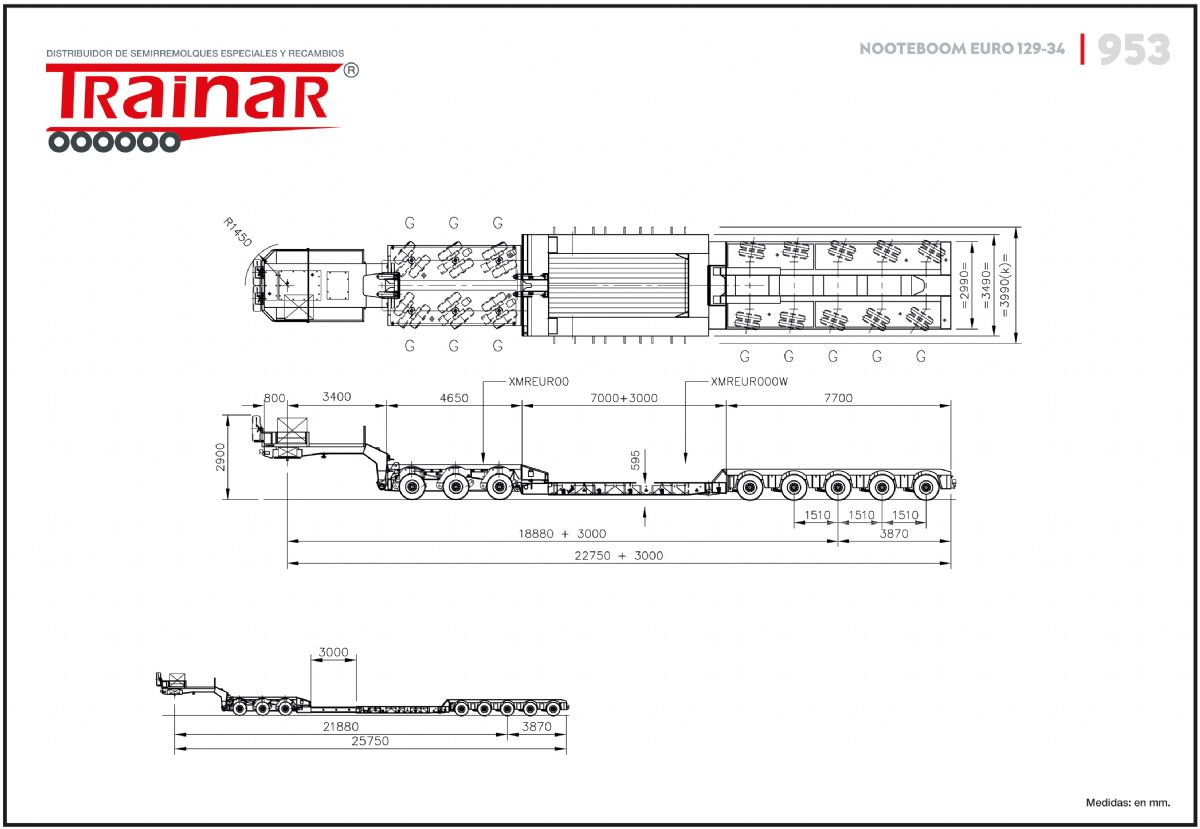

953 - Plano Euro 129-34

Download

Highlighted data / extras

Gooseneck type

Hydraulic Detachable

Hydraulic operation

Diesel and electric engine

Automatic greasing

Yes

- "U" Channel at rear for hook on aluminum ramps.
- "U" channel at the front of the bogie.
- Trought at the rear bogie.
- Automatic central greasing system on the neck, interdolly and rearbogie.
- Electric and diesel engines for the hydraulic functions.
- Compression joint between the bed and the bogie.
- Pendular axles on the Interdolly.
