GOLDHOFER
Semi lowbed with excavator trough. Ref: 41448

Reference

41448

Date of manufacture

Nuevo

Brand

Goldhofer

Type

STN-L 3 (245)

Extendable

Ramps

Yes

Type of ramps

Single-section hydraulics of 3 meters

Technical data

Rear axles

Axle number

Rigid axles number

Self-steering axles number

Axle brand

BPW

Suspension

Air Suspension

Brake type

EBS

Tire size

245/70 R17.5

Tires number

Excavator trough

Yes

Steering control remote

Yes, by cable

Weights in kg

80 Km/h

Fifth wheel load

18.500

Axle load

36.000

GVW

54.500

Deadweight

9.392

Payload

45.108

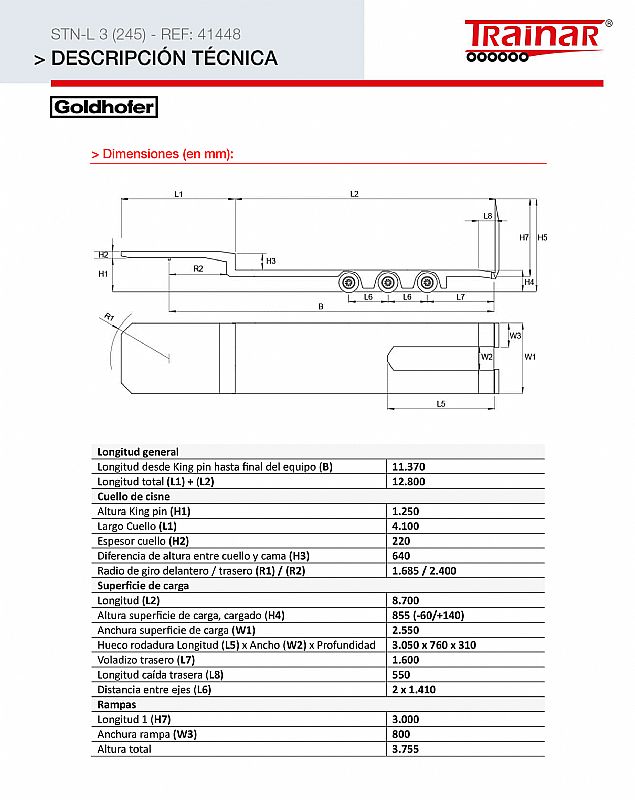

Dimensions in mm

Kin-pin height

1.250

Gooseneck length

4.100

Total length

12.800

Loadfloor length

8.700

Axle distance

1.410

Total height

855

Loadfloor width

2550

Highlighted data / extras

Hydraulic operation

Electro-hydraulic

- Trafficdeckgo non-slip coating in the cargo area.
- Second suspension working height. From 855 mm (-60/+140) to 895 mm (-100/+100).
- TIM system (Odometer, electronic scale for axle load and EBS diagnosis).
- Recess in the tread for excavator arm with slotted holes to secure the load.
- Single section hydraulic ramps with a load capacity of 38 tons and with lateral displacement.
- Aluminum boilers.
- Telescopic stretchers with retaining plate for boards.
- 3-year warranty on the chassis, starting from the delivery of the vehicle.
- BPW 5+3 year warranty on axles.
- 12-month warranty on the rest of the components, starting from the delivery of the vehicle.
- Color Novagrey (DB7350).
