NICOLAS
Cama baja 8 (3+5) ejes pendulares. Ref: 9112

Reference

9112

Date of manufacture

2006

Brand

Nicolas

Extendable

Technical data

Front axles

Rear axles

Axle number

Steering Axles number

Axle brand

SAE

Suspension

Pendular

Brake type

Drum

Tire size

285/70 R19,5

Tires number

Steering control remote

Yes, wireless

Weights in kg

100 Km/h

70 Km/h

Fifth wheel load

25.000

Axle load

96.000

112.000

GVW

121.000

137.000

Deadweight

37.110

Payload

83.890

99.890

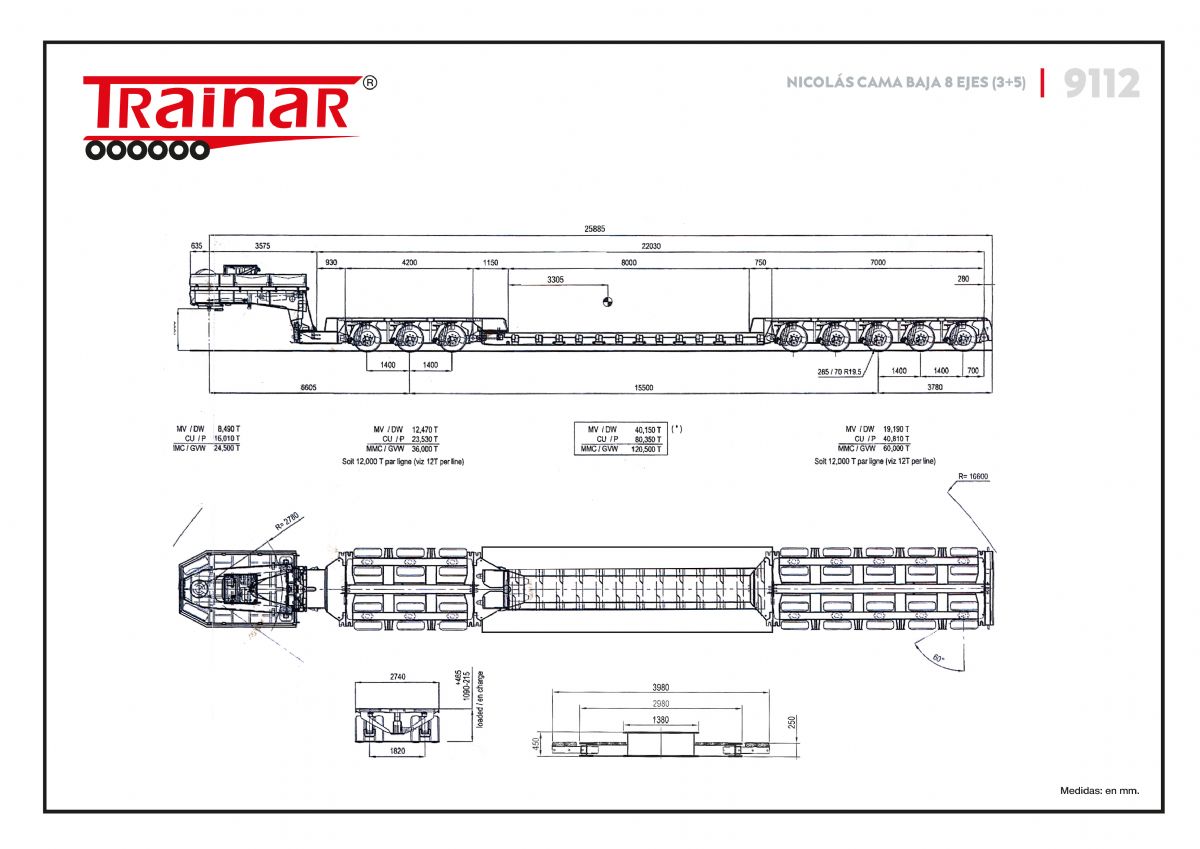

Dimensions in mm

Kin-pin height

1.300

Gooseneck length

4.210

Total length

26.190

Loadfloor length

8.000

Axle distance

1.390

Total height

2.700

Loadfloor width

3000 - 3980

Loadfloor extension (width)

2x490

Highlighted data / extras

Gooseneck type

Hydraulic Detachable

Hydraulic operation

Hydraulic operation by auxiliar engine, Lombardini

Automatic greasing

Yes

- All axles are pendular.
- Bed with double height to reduce loading height.
- Centralized greasing on the neck and turntable.
- Suspension raise/lower system.
- 3.5” kingpin coupling device.
- Closed storage box above the neck.
- 4 oversized load banners with LED device.

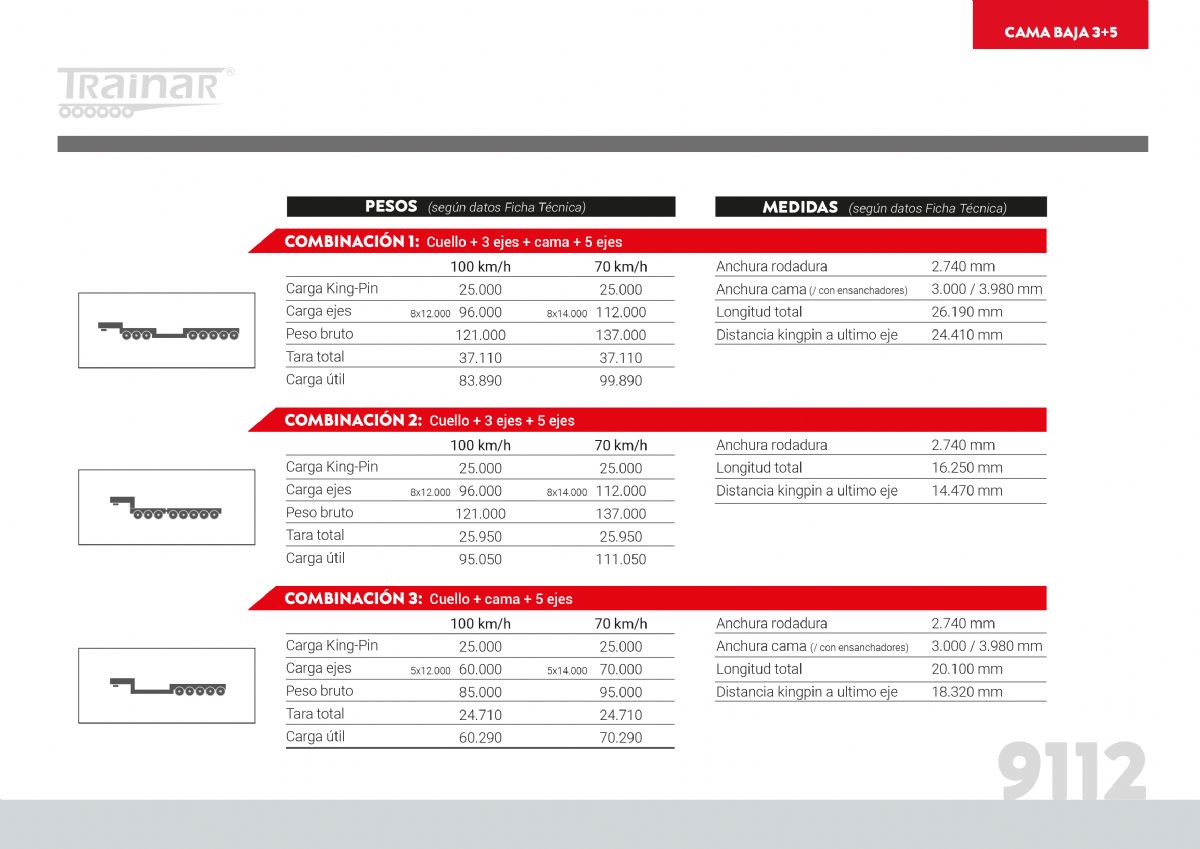

*Check the weights and dimensions of the other equipment combinations on the leaflet.
